5-axis CNC machining center L 5AX-500
verticalHSK A-63SK40

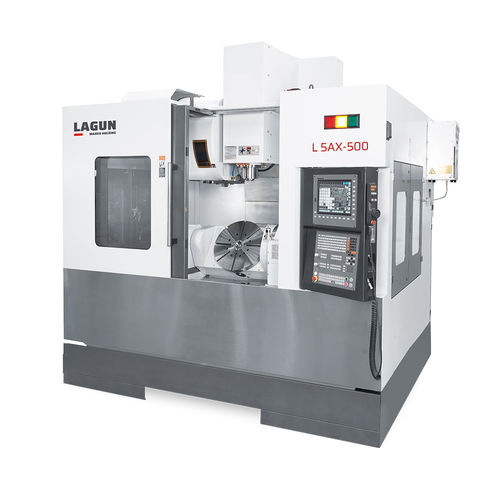

5-axis CNC machining center - L 5AX-500 - REPUBLIC LAGUN - vertical / HSK A-63 / SK40

Add to favorites

Compare this product

Characteristics

Number of axes: 5-axis
Spindle orientation: vertical
Spindle mount: HSK A-63, SK40, BBT40
Number of tool stations: 40 tools
Other characteristics: direct-drive
X travel: 800 mm
(31.5 in)
Y travel: 700 mm
(27.56 in)
Z travel: 645 mm
(25.39 in)
Rotational speed: 12,000 rpm, 15,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1)
Power: 10 kW, 17 kW, 36 kW
(13.6 hp, 23.11 hp, 48.95 hp)
Work feed X-axis: 30 m/min
Work feed Y-axis: 30 m/min
Work feed Z-axis: 30 m/min
Table load capacity: 250 kg, 300 kg
(551 lb, 661 lb)
Positioning accuracy: 0.005 mm
(0.0002 in)
Repeatability: 0.003 mm
(0.00012 in)
Tool-changing time: 2.5 s
Weight: 10,000 kg
(22,046.23 lb)
Overall length: 2,700 mm
(106.3 in)
Overall width: 2,295 mm
(90.4 in)
Overall height: 3,400 mm
(133.9 in)

Description

TABLE Table size Ø 500 mm Tilting axis (A-axis) +30º / -120º Rotary axis (C-axis) 360º Min.-max. distance from spindle to table (horizontal) -5 / 640 mm 'T' slots (number and size) 8 x 14 mm MAIN SPINDLE Drive system Directo / Zuzena / Direct / Direct / Direkt Power (S1/S6) 10 / 17 kW Torque (S1/S6) 64 / 109 Nm TRANSLATION System Guía lineal rodillos / Arrabol motako gida lineala / Roller type linear guideway / Glissière linéaire à rouleaux / Linear-Rollenführung Nº of guideways (X-Y-Z) 2 - 3 - 2 Runner blocks (X-Y-Z) 6 - 6 - 6 FEEDRATES Rapid feedrates (X-Y-Z) 30 m/min Rapid feedrates (A) 10 rpm Rapid feedrates (C) 15 rpm AUTOMATIC TOOL CHANGER Nº of tools 30 Selection system Random / Ausazkoa / Arm type / À bras / Doppelgreifer ACCURACY Positioning (X-Y-Z) ± 0,005 / 300 mm Indexing accuracy (A/C) 10 s Repeatability (A/C) 4 s GENERAL INFORMATION Floor space required 2.700 x 2.295 mm
