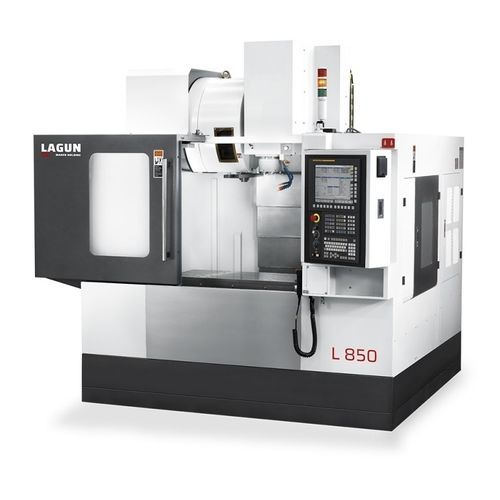

Vertical CNC machining center L 850
3-axiscolumn typeBT 40

Add to favorites

Compare this product

Characteristics

Number of axes: 3-axis
Spindle orientation: vertical
Structure: column type
Spindle mount: BT 40, SK40
Number of tool stations: 16 tools
X travel: 850 mm
(33.46 in)
Y travel: 485 mm, 500 mm
(19.09 in, 19.69 in)
Z travel: 630 mm
(24.8 in)
Rotational speed: 8,000 rpm, 10,000 rpm, 12,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)
Power: 14 kW, 18 kW, 21 kW
(19.03 hp, 24.47 hp, 28.55 hp)
Work feed X-axis: 36,000 mm/min
(24 in/s)
Work feed Y-axis: 36,000 mm/min
(24 in/s)
Table load capacity: 400 kg
(882 lb)
Tool weight (max): 8 kg
(17.6 lb)
Tool-changing time: 6 s
Weight: 4,300 kg
(9,479.88 lb)
Overall height: 2,800 mm
(110.2 in)

Description

TABLE Table surface 1.000 x 460 mm T slots 5 x 18 x 80 mm Table to floor height 925 mm HEAD Transmission Polea-correa / Polea-katea / Belt-pulley / Poulie-courroie / Riemenscheibe Distance from spindle to table (min./max.) 115 ÷ 755 mm Distance from spindle to column 550 mm TRANSLATION System Guía lineal bolas / Bola motako gida lineala / Ball-type linear guideway / Glissière linéaire à billes / Linear-kugelführung Nº of guideways (X-Y-Z) 2 - 3 - 2 Runner blocks (X-Y-Z) 4 - 5 - 4 Ø ballscrews 32 x 12 mm Selection system Sombrilla / Itzalkin motakoa / Armless / Type parapluie / Teller OPTIONAL EQUIPMENT Automatic tool changer Random / Ausazkoa / Arm type / À bras / Doppelgreifer
