3-axis machining center L 1200
verticalcolumn typeBT 40

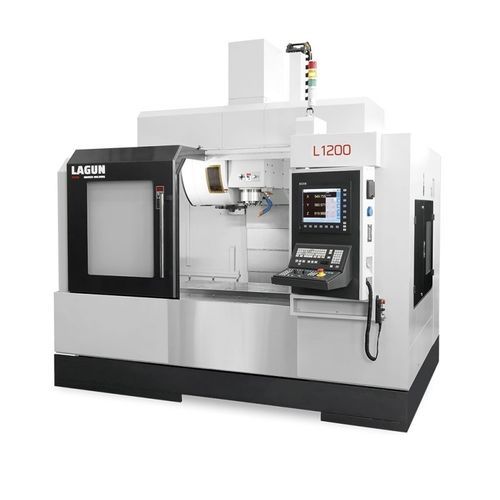

3-axis machining center - L 1200 - REPUBLIC LAGUN - vertical / column type / BT 40

Add to favorites

Compare this product

Characteristics

Number of axes: 3-axis
Spindle orientation: vertical
Structure: column type
Spindle mount: BT 40, SK40
Number of tool stations: 60 tools, 30 tools
X travel: 1,200 mm
(47.24 in)
Y travel: 640 mm
(25.2 in)
Z travel: 620 mm
(24.41 in)
Rotational speed: 8,000 rpm, 10,000 rpm, 12,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)
Power: 11 kW, 15.5 kW, 24 kW, 25 kW, 30 kW
(14.96 hp, 21.07 hp, 32.63 hp, 33.99 hp, 40.79 hp)
Work feed X-axis: 48 m/min
Work feed Y-axis: 48 m/min
Work feed Z-axis: 42 m/min
Table load capacity: 800 kg
(1,764 lb)
Positioning accuracy: 0.005 mm
(0.0002 in)
Repeatability: 0.003 mm
(0.00012 in)
Tool-changing time: 2.5 s
Weight: 7,200 kg
(15,873.28 lb)
Overall length: 3,350 mm
(131.9 in)
Overall width: 2,473 mm
(97.4 in)
Overall height: 3,200 mm
(126 in)

Description

TABLE Table surface 1.400 x 600 mm T slots 5 x 18 x 100 mm Table to floor height 925 mm HEAD Transmission Polea-correa / Polea-katea / Belt-pulley / Poulie-courroie / Riemenscheibe Distance from spindle to table (min./max.) 85 ÷ 705 mm Distance from spindle to column 714 mm TRANSLATION System Guía lineal rodillos / Arrabol motako gida lineala / Roller type linear guideway / Glissière linéaire à rouleaux / Linear-Rollenführung Nº of guideways (X-Y-Z) 2 - 3 - 2 Runner blocks (X-Y-Z) 6 - 5 - 6 Ø ballscrews 40 x 16 mm AUTOMATIC TOOL CHANGER Selection system Random / Ausazkoa / Arm type / À bras / Doppelgreifer
