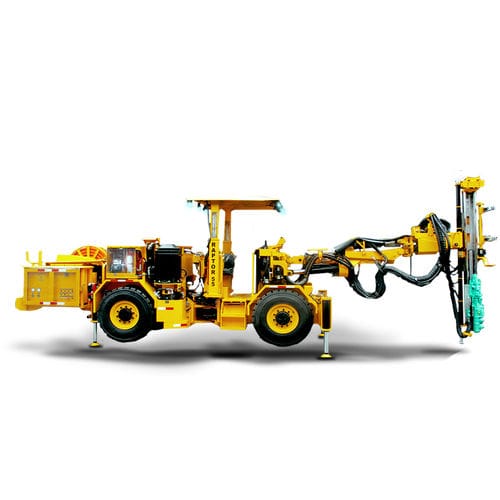

Horizontal drilling rig RAPTOR 55 XP

self-propelledrotaryhydraulic

RAPTOR 55 XP is an electro-hydraulic rig for long hole drilling, It has an hydraulic boom, 5APC model, with parallel holding. Use a Montabert Drifter HC 95 with 22 kW and Back -Hammeringrods extractor, the most modern rock drill in the market. It comes equipped with the BARYCENTRE system to synchronize automatically the drilling and rotation axes; this system facilitates the drilling of radial and parallel holes with reduced times for positioning. The 8000 series feed beam with 3 Stingers provide the best stability to reduce the deviation. Includes Magazine for 14 rods, optional 21 rods. Full 360°, horizontal coverage with parallel holding is 3.60 m; maximum length of drilling up to 30 m, diameters up to 102 mm bit, Reamer 127 mm. Chassis for heavy duty application, articulated 4WD, self-propelled with diesel, electro hydraulic system for drilling. Applications: • Sub level and benching. • Block Caving. • VCR and Cable Bolting application.
