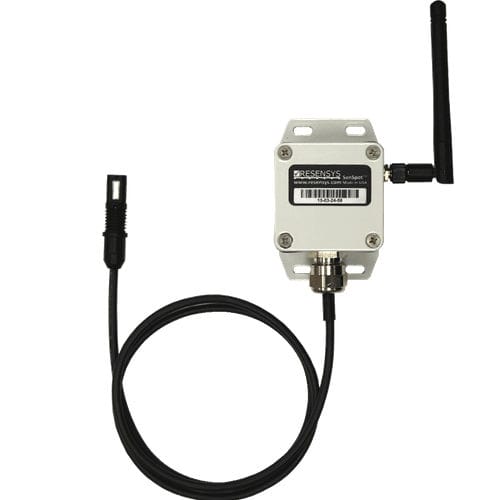

Wireless humidity and temperature sensor SenSpot™

flange-mountsmallfor concrete

Wireless Humidity & Temperatue SenSpot™ sensor offers a breakthrough technology for real-time and long-term structural health monitoring. SenSpot™ uses Resensys’s proprietary sensing, scheduling and ultra-low power synchronization technology. SenSpot™ is designed to operate maintenance-free for more than a decade. After installation, SenSpot™ does not need calibration, battery replacement, or any other maintenance during its entire service life. Humidity and Temperature SenSpot™ sensor can be easily installed to monitor temperature and humidity around structural elements of bridges, buildings, etc. Featured Applications • Outdoor ambient temperature monitoring • Concrete and steel temperature monitoring • Humidity monitoring Specs & Details • Long lifetime: minimum expected life without battery replacement 10 years • Lightweight： about 147 g (5.19 oz.) • Wireless transmitter: 120 g (4.23 oz.) • Cable (1ft): 10 g (0.35oz.) • Humidity and temperature sensing probe: 5 g (0.17 oz.) • Easy mounting: ○ Self-adhesive, no drilling is required (e.g. steel) ○ Flange-mount, drilling is required (e.g. concrete) ○ Quick installation, 1-2 minutes • High accuracy: ○ Temperature: 0.5 °C ○ Humidity: 1% • Wide working temperature: -40 to +65°C (-40 °F to +150°F) • Long communication range: 1.0km free space • Small size: ○ Wireless transmitter: 50mm (1.96”) x 50mm (1.96”) x 34mm (1.34”) ○ Humidity & temperature probe: 30mm (1.2”) x 7mm (0.275”) x 7mm (0.275”) • Complementary data collected: temperature, battery voltage, etc.
