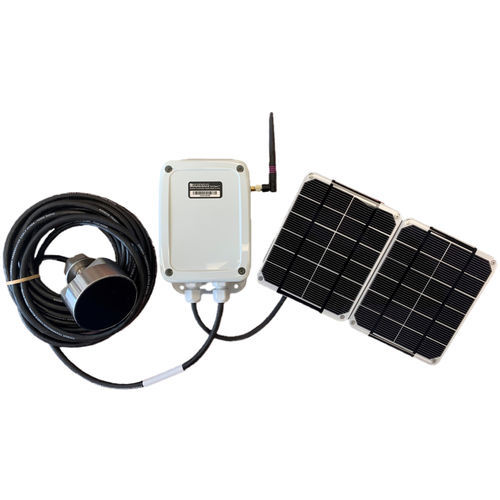

Sonar SenSpot™

SenSpot™ wireless sonar depth meter provides an easy way to install a scalable solution for collecting underwater data such as depth and water temperature. It comes with a high-capacity lithium-ion battery and a solar panel with its mount, requiring no battery replacement and once installed. The whole product has IP67 protection (completely weatherproof) thus, it is an excellent choice for marine applications that require the sensors to be installed in outdoor and often hard-to-access locations. It uses an AIRMAR EchoRangeTM 200KHz sensor which is among one of the highest performance sensors in the field of marine applications for measuring underwater depth and temperature. This product uses Resensys’s proprietary Active RF Technology, which offers a high-performance method for large-scale sensing, wireless synchronization, and ultra energy efficient wireless communication. It can simultaneously serve as a SenSpot™ repeater to extend the wireless communication range between SenSpot™ and SeniMax™. Featured Applications • Underwater navigations • Bathymetric surveys • Pipeline inspections • Marine salvage • Underwater target identifications • Search and recovery • Ocean science, discovery and academic research Specs & Details • Storage temperature range: -30°C to +70°C (- 40°F to +150°F) • Operating temperature range: -5 to 60°C (23 to 140°F) • Wireless communication range: 1.0km (0.62mi) free space • Cable ○ Length: 7.6m (25ft) ○ Type: C304, four shielded twisted pair ○ Reverse polarity protection • Water Temperature ○ Accuracy: ±0.05°C ○ Resolution: 0.09°C • Depth ○ Minimum reading: 0.4 m (15”)
