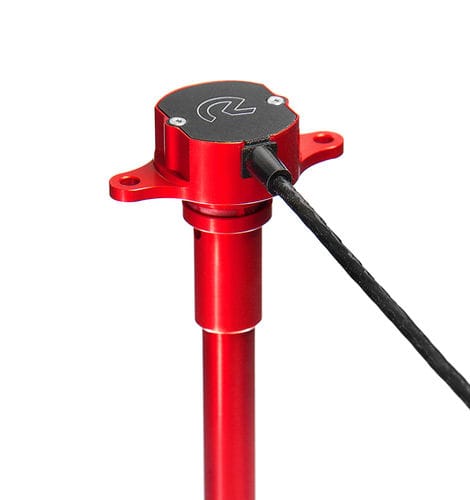

Capacitive level sensor LS200

for liquids

LS200 Liquid Level Sensor The LS200 liquid level sensor utilises Reventec’s proven capacitive level measurement technology, providing continuous measurement of the contents of a tank to very high accuracy. Mounting & Mechanical Features Featuring two ⌀4.2mm mounting bolt holes, the footprint of the sensor head is extremely small with all control electronics mounted within the sensor head. Sealing of the sensor to the tank is made by way of a radial O-ring seal (supplied). All LS200 liquid level sensors are manufactured to the specific length required, up to 450mm long (see the LS245 for longer requirements). This eliminates the need to cut down or mechanically modify the sensor, while ensuring it is a perfect fit for the application. LS200 liquid level sensors can be mounted in any orientation, including vertical inverted mounting. Accuracy, Outputs & Electrical Connectivity The LS200 is an advanced device with two accuracy specifications available: +/-1% accuracy or +/-0.5% accuracy. The device is available with a range of industry-standard outputs, including an optional low level alarm that switches when the liquid drops below a calibrated level. Output options include: Analogue 0-5V (typically calibrated 0.25V empty, 4.75V full) Analogue 0-5V and Switch to Ground Analogue 0-5V and CAN CAN Only
