Capacitive level sensor LS500

for liquids

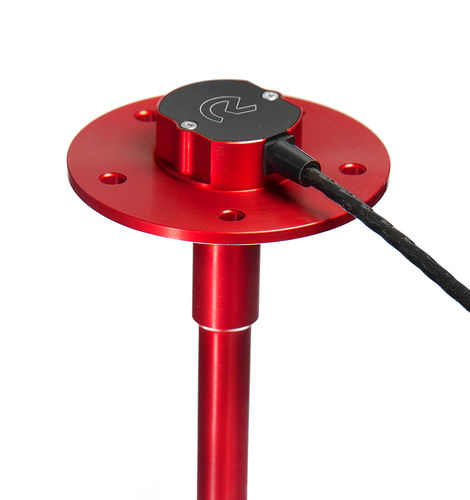

LS500 Liquid Level Sensor Capacitive liquid level sensor with an SAE 5-bolt mounting pattern, custom-built up to 450mm long. LS500 is a solid-state capacitive liquid level sensor, capable of continuous level measurement in all common liquid types. The sensor is manufactured to your length requirement up to 450mm long, with a range of output formats, operating temperature ranges and accuracy specifications to suit most applications. LS500 Liquid Level Sensor The LS500 liquid level sensor utilises Reventec’s proven capacitive level measurement technology, providing continuous measurement of the contents of a tank to very high accuracy. Mounting & Mechanical Features Featuring an SAE 5-bolt mounting pattern, the footprint of the sensor head is extremely small with all control electronics mounted within the sensor head. Sealing of the sensor to the tank is made by way of a radial O-ring seal (supplied). All LS500 liquid level sensors are manufactured to the specific length required, up to 450mm long (see the LS545 and LS570 for longer requirements). This eliminates the need to cut down or mechanically modify the sensor, while ensuring it is a perfect fit for the application. LS500 liquid level sensors can be mounted in any orientation, including vertical inverted mounting.
