Capacitive level sensor LS845

for liquids

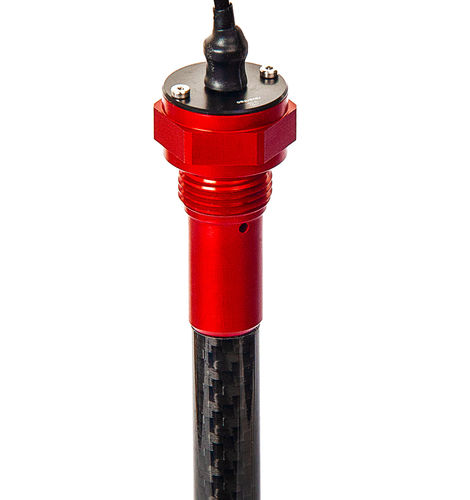

LS845 Liquid Level Sensor Capacitive liquid level sensor with an AN-8 thread mount, custom-built up to 700mm long. LS845 is a solid-state capacitive liquid level sensor, capable of continuous level measurement in all common liquid types. The sensor is manufactured to your length requirement up to 700mm long, with a range of output formats, operating temperature ranges and accuracy specifications to suit most applications. LS845 Liquid Level Sensor The LS845 liquid level sensor utilises Reventec’s proven capacitive level measurement technology, providing continuous measurement of the contents of a tank to very high accuracy. Mounting & Mechanical Features Featuring an AN-8 threaded mount, the footprint of the sensor head is extremely small with all control electronics mounted within the sensor head. Sealing of the sensor to the tank is made by way of a radial O-ring seal (supplied). All LS845 liquid level sensors are manufactured to the specific length required, from 450mm to 700mm long (see the LS800 for shorter length requirements). This eliminates the need to cut down or mechanically modify the sensor, while ensuring it is a perfect fit for the application. Due to the longer length of the sensor, the probe features a carbon-fibre outer layer, which ads strength to the sensor and ensures reliability in high vibration and extreme operating conditions.
