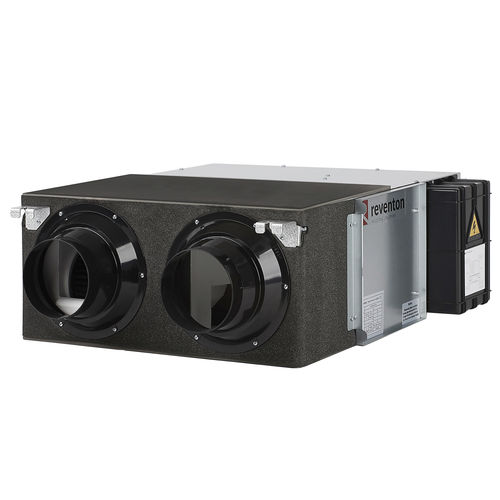

Heat recovery system INSPIRO BASIC series

Heat recovery units with an enthalpy exchanger is intended for ventilation systems as a modern element enabling the recovery of energy – heat and moisture. It is designed for ventilation of residential buildings: single- and multi-family houses. Energy recovery allows for a significant reduction in building operating costs. The enthalpy exchanger located in the device is responsible for additional humidification / dehumidification of the air supplied to the room. Such a technological solution means that there is no need to install a condensate drainage system and minimizes the risk of frost. 3-speed AC fans responsible for supplying and exhausting ensure smooth exchange of used air with fresh air. The applied G3 pre-filters protect the exchanger against quick contamination. Communication and control of the device takes place via the control panel. Place to use The INSPIRO BASIC heat recovery units will work well in buildings such as: one-family houses, multi-family houses. Parameters Motor power: 105 – 355 W Weight: 23 – 60 kg Energy class: A * * according to EU no. 1254/2014 Loudness: 31.5 – 41 dB Nominal air flow: 200 – 800 m3 / h Control The heat recovery units is equipped with a control panel that enables device management. Benefits G3 pre-filters protecting the exchanger against dirt, enthalpy exchanger enabling heat and moisture recovery, 3 speed AC fans, intuitive BASIC controller included, power schedule, manual “bypass”, filter contamination signaling.
