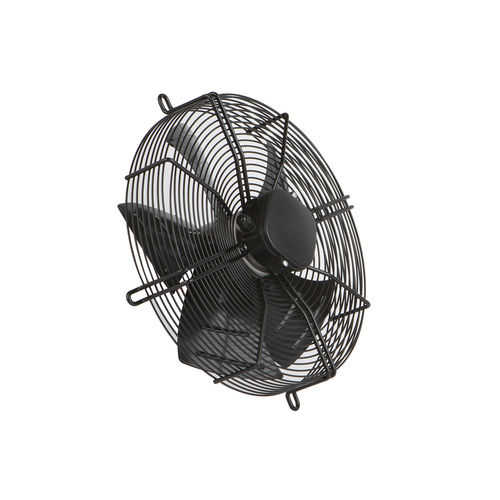

Axial fan FR-BGwall-mountedventilation
Add to favorites
Compare this product
Characteristics
- Type
- wall-mounted
- Configuration
- axial
- Function
- ventilation
- Air flow
Min.: 1,520 m³/h
(53,678.293 ft³/h)Max.: 21,000 m³/h
(741,608.001 ft³/h)- Rotational speed
Min.: 730 rpm
(4,587 rad.min-1)Max.: 2,400 rpm
(15,080 rad.min-1)- Noise level
Min.: 60 dB
Max.: 75 dB
Description
The blowing axial fan is a device with a wide range of ventilation solutions. Its design enables the air sucked in from the outside to be effectively pumped into the building interior. Perfect for facilities such as shops, production halls, workshops, warehouses, greenhouses and sports facilities. This device is a combination of design and precision of workmanship and careful selection of materials from which it is made.
Place to use
The blowing axial fans is designed for installation in buildings such as:
warehouses,
shops,
sports facilities,
production halls,
greenhouses,
logistics centers.
Parameters
Weight: 2.5– 35 kg
Motor rated current: 0.42 – 3.5 A
Housing: powder coated galvanized steel wire mesh
Additional information:
Device in 1- or 3-phase version.
Designed for wall mounting.
Paddles made of metal.
Control
In order to ensure control over the operation of the device, we encourage you to familiarize yourself with the dedicated automation for the FR-BG series.
Benefits
steel blades.
powder coated galvanized protective mesh,
modern design.
