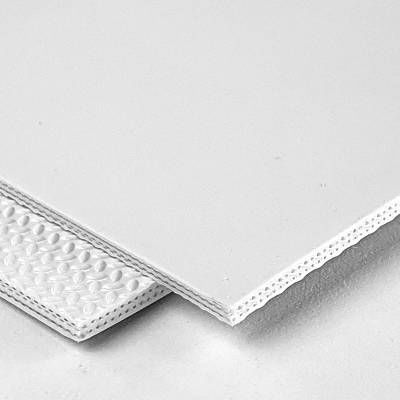

Polyurethane conveyor belt 2PURB40/LHR

smoothShore Aindustrial

With a double TPU cover and sealed edges [FPS], the Securev™ belt offers a true protection from any contamination and infiltration of liquids or oils. The Securev™ belt surface is perfectly smooth, homogenous and non-porous.The High Release [HR] positive structure is a self-cleaning surface, easily releasing all type of residues due to its rounded structure. As Securev™ belts have an excellent dimensional stability, the conveying speed can be very high, even on wide belts.This ensures perfect tracking, and prevents shrinkage, elongation, fraying and undulations. Number of plies 2 Fabric type Monofilament very rigid Thickness of top coating 0,4 mm 0.016 in Top cover Matte Antistatic No k1% (after relaxation) per unit of width 14 N/mm 80 lbs/in Minimum pulley Ø 50 mm 1.97 in Minimum pulley Ø backflex 70 mm 2.76 in Temperature range -40°C +90°C -40°F +194°F
