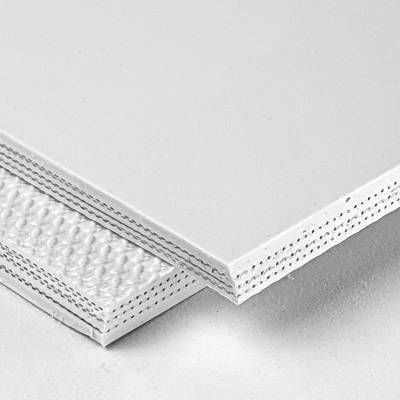

Polyurethane conveyor belt 3PURB170/LHRsmooth92 shore Aindustrial
Add to favorites
Compare this product
Characteristics
- Material
- polyurethane
- Pattern
- smooth
- Hardness
- 92 shore A
- Sector
- industrial, for the food industry, for the chemical industry, for the recycling industry
- Color
- white
- Applications
- process, food, for sorting systems, for waste
- Other characteristics
- double
- Width
2,000 mm
(78.74 in)- Thickness
5 mm
(0.197 in)
Description
With a double TPU cover and sealed edges [FPS], the Securev™ belt offers a true protection from any contamination and infiltration of liquids or oils. The Securev™ belt surface is perfectly smooth, homogenous and non-porous.The High Release [HR] positive structure is a self-cleaning surface, easily releasing all type of residues due to its rounded structure. As Securev™ belts have an excellent dimensional stability, the conveying speed can be very high, even on wide belts.This ensures perfect tracking, and prevents shrinkage, elongation, fraying and undulations.
Number of plies
3
Fabric type
Monofilament very rigid
Thickness of top coating
1,7 mm
0.067 in
Top cover
Matte
Antistatic
No
k1% (after relaxation) per unit of width
18 N/mm
103 lbs/in
Minimum pulley Ø
180 mm
7.09 in
Minimum pulley Ø backflex
240 mm
9.45 in
Temperature range
-40°C +90°C
-40°F +194°F
