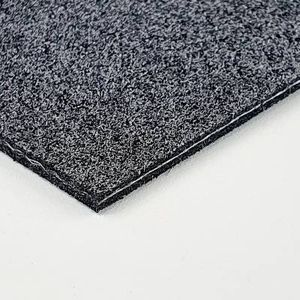

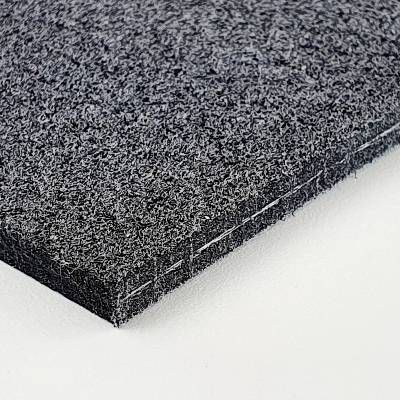

Flexible conveyor belt F-N-60-HCfeltShore Aindustrial
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Material
- felt
- Hardness
- Shore A
- Sector
- industrial
- Color
- black
- Applications
- process
- Other characteristics
- anti-static, coating
- Width
2,000 mm
(78.74 in)- Thickness
5.5 mm
(0.217 in)
Description
The 1-ply black felt belts are robust as well as flexible. They allow horizontal and inclined conveying of fragile, cutting, oily or sticky parts while facilitating the transfer. Operating silently, these felt conveyor belts are especially used for the accumulation of products.
Number of plies
1
Thickness of top coating
0 mm
0 in
Top cover
k1% (after relaxation) per unit of width
11 N/mm
63 lbs/in
Minimum pulley Ø
100 mm
3.94 in
Minimum pulley Ø backflex
200 mm
7.87 in
Temperature range
-20°C à +120°C
-4°F à +248°F
