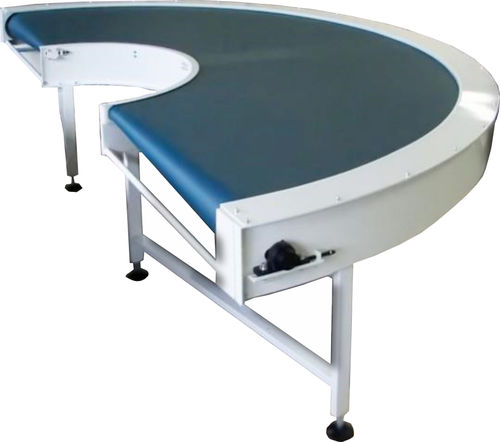

Belt conveyor RE series

horizontalcurvedtransport

The RE belt bend conveyors are equipped with conical drums. This technique guarantees: * A proper alignment of the conveyed products * A silent functioning * The conveying of heavy loads at high speeds * High quality, FDA approved, polyurethane conveyor belts, manufactured by Reveyron * Conveyor belt driven by conical drums and guided by rolling bearings (single or double row) on sewn reinforcements * Compliance with product alignment * Angles from 20° to 180° * Belt width between 185 and 1 990 mm * Maximum load: 30 to 200 kg * Maximum speed: 1 to 1.3 m/s * Feet adjustable +/-50 mm * Sew Usocome 230/400 V three-phase engine IP54 * Direct assembly of a hollow shaft * Minimum allowable room temperature: 3°C * Made of painted or stainless steel RE options: * Installation of the engine under the conveyor using a toothed and pinion belt drive * Speed regulator * Double direction of rotation * Side edges in steel – stainless steel – plastic, etc. * All RAL paint colours in epoxy paint * Trunk castors with brake
