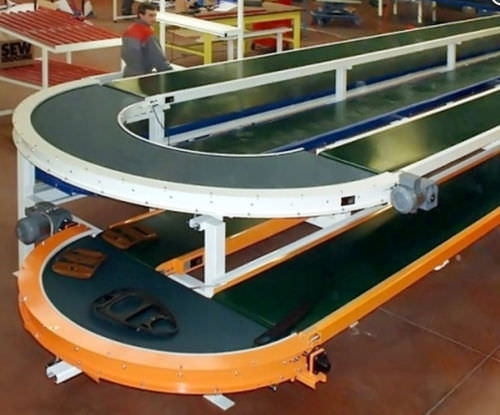

Belt conveyor CCD

horizontalcurvedtransport

The belt bend conveyors have 45 mm diameter cylindrical rolls. Curved conveyor belt guided by chain. This technology guarantees : A uniform and regular speed An optimal transfer of light loads and small parts A particularly silent functioning High quality, EU and FDA approved Reveyron manufacturing polyurethane conveyor belts Angles from 15 to 180° Adjustable feet +/-50 mm Sew Usocome 230/400 V three-phase driven IP54 engine on outside radius, direct assembly on a hollow shaft Minimum allowable room temperature : 3°C Made of painted epoxy or stainless steel CCD options : All RAL paint colours in epoxy paint Customization with specific low-friction rails (N version) for high speeds PVC conveyor belts available in felt, polyester, flame-resistant, etc... Installation of the drive unit under the conveyor using a toothed and pinion belt drive Double direction of rotation Adjustable speed regulator Automatic chain lubrication device Side edges in steel - stainless steel - plastic, etc... Caster wheels with brake
