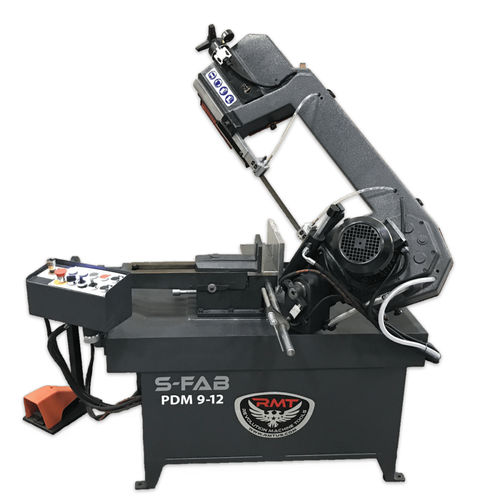

Band saw S-FAB PDM 9-12

for metalssemi-automaticdouble-miter

S-FAB PDM 9-12 Semi-Automatic Pivot Type Double Miter Bandsaw with Standard Options 9″ x 12″ Flat Capacity Ø9″ Round Capacity The Revolution Machine Tools S-FAB PDM 9-12 Semi-Automatic Pivot Type Double Miter Bandsaw is a popular sawing machine which is heavy duty and is favorable in price and performance ratio. Comes equipped with adjustable cutting pressure and coolant pump with tank. It performs with electric-mechanical blade tension and is ideal for large and small production workshops. Drives with hardened and ground worm shaft, saw exit by means switch, pivoting control panel, and is supplied with fixed base. The cutting capacity of this machine is 9” x 12” in 90° flat cuttings and Ø9” in round material. It is possible to make angled cuts between 45° RIGHT and 60° LEFT degrees. Our machines make the cutting hydraulically and automatically rise to the cutting height after the cutting is finished. The material is manually driven up to the stop and the cut is repeated. In repeated cutting with the foot button, the vise hydraulically closes and starts cutting, and when the cutting is finished, it rises, and the vise opens. Thus, serial cutting is ensured. The S-FAB PDM 9-12 Bandsaw comes standard equipped with a control panel, blade brush, material length stop, security switch, Siti heavy duty gearbox, infinite variable speed inverter, hydromechanical blade tension, coolant pump, 4ft roller table, 220V or 440V 3 phase power.
