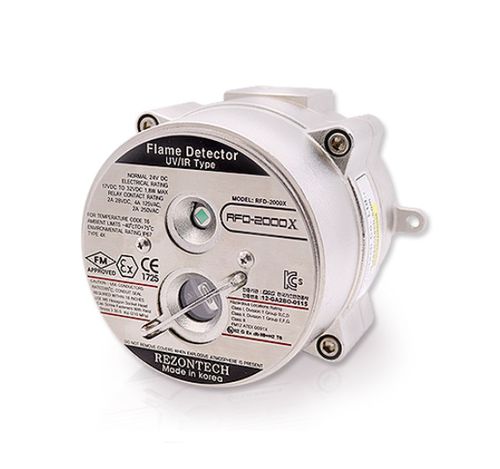

IR flame detector RFD-2000X
UV4-20 mAwith relay output

IR flame detector - RFD-2000X - REZONTECH - UV / 4-20 mA / with relay output
IR flame detector - RFD-2000X - REZONTECH - UV / 4-20 mA / with relay output
IR flame detector - RFD-2000X - REZONTECH - UV / 4-20 mA / with relay output - image - 2
Add to favorites
Compare this product


Characteristics

Technology
IR, UV
Output
4-20 mA, with relay output, RS-485
Other characteristics
explosion-proof, IP67

Description

RFD-2000X is a UV/IR type Flame Detector with international certifications. Identify fire when both UV and IR sensors simultaneously detect the presence of a flame. Maximum 30 meters of detection range with a 90 degree cone of vision.  Permits operation at Hazardous areas.  User selectable output options among Relays, 4-20㎃ stepped output, and RS-485.  • UV/IR Dual-sensors • Enhanced False Alarm Immunity against sunlight and artificial false alarm sources  • Approval for Explosion-Proof and Dust Ignition proof  • High reliability in operation with Automatic and Manual Self-Diagnosis  • Suitable for hazardous areas such as Oil, Gas stations and Petrochemical plants  • Field selectable sensitivity and delay time  • Type : Ultraviolet and Infrared • Detection Range : 100ft(30m) for N-Heptane fire • Field of View : Horizontal 90°, Vertical 90° • Temperature Range Operating : -40℃ to +75℃ • Storage : -50℃ to +80℃ • Humidity Range : 0 to 95% relative humidity
