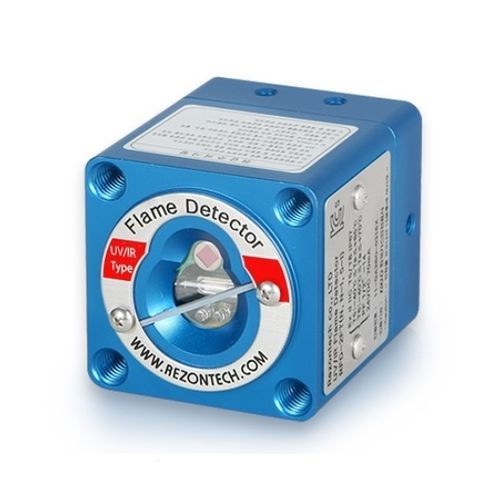

UV flame detector RFD-2FT5-I

IRwith relay output4-20 mA

RFD-2FT5-I is a UV/IR type flame detector. Identify fire when both UV and IR sensors simultaneously detect the presence of a flame. Maximum 50 meters of detection range with a 90 degree cone of vision. Permits operation at Hazardous areas. User selectable output options among Relays, 4-20㎃ stepped output, and RS-485. • UV/IR Dual-sensors • Enhanced False Alarm Immunity against sunlight and artificial false alarm sources • Explosion-Proof and Dust Ignition proof • Suitable for hazardous areas such as Oil, Gas stations and Petrochemical plants • Type : Ultraviolet and Infrared, Indoor, Explosion-proof, Particulate • Nominal sensing range : 40m • Sensing angle : 90°, Cone type • Operating temp. : -40 ~ +75°C • Humidity : 0~95%
