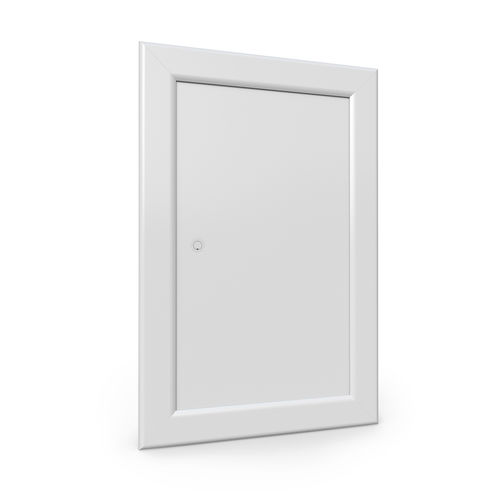

Smoke evacuation damper KAMOUFLAGE MP 1V60

The Kamouflage MP is a motorised, aesthetic and CE marked smoke control shutter that can be perfectly integrated in many smoke control systems. BENEFITS Optimal smoke control system thanks to higher free air passage and minimal pressure loss Easy to install thanks to optional mounting frame (EASY KAP ME/MP or EASY KGC ME/MP) and its light weight Easy to finish thanks to removable front plate Aesthetic solution that can be integrated in any interior design Good thermal and acoustic insulation thanks to the double-walled door and seals Simple operating tests through remote opening and resetting by an actuator Fully integrable in the wall finish Installation at minimal distances FEATURES Tested according to EN 1366-10 Compliant with EN 12101-8 Suitable for use as air release and air supply vent in PDS-systems according to EN 12101-6 Suitable for air supply and smoke evacuation vent in SHEVS-systems according to EN 12101-8 Light weight: ≤ 35 kg Available with ready-to-install finish (white lacquered RAL 9010) Approved for installation in calcium-silicate, 'Staff', Tecniver, Glasroc, Extha and concrete shafts. Maintenance-free Superior air tightness (tested at 1500 Pa) Standard RAL 9010 (to be ordered)
