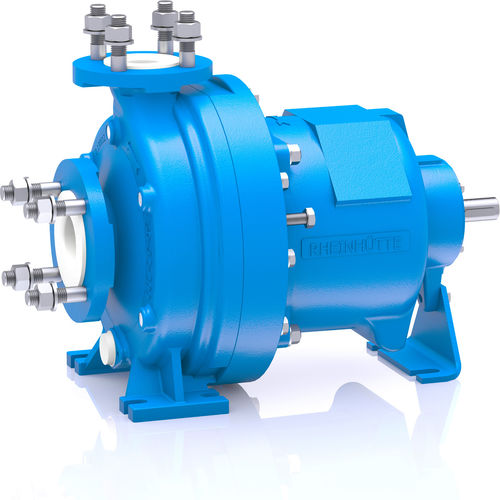

Centrifugal with volute pump FNPMfor chemicalsmagnetic-driveindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal with volute
- Fluid
- for chemicals
- Operation
- magnetic-drive
- Domain
- industrial
- Material
- plastic
- Fluid specification
- for aggressive media, for flammable fluids, for toxic fluids
- Other characteristics
- single-stage, horizontal mount
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 350 m³/h
(12,360.13335 ft³/h)- Pressure
16 bar
(232.06 psi)- Head
Min.: 0 m
(0'00" )Max.: 100 m
(328'01" )
Description
Material
Plastic-lined
Design
Standardized Chemical Pump (ISO 2858, ISO 5199)
Size
DN 25 - DN 100
Delivery rate
Qmax. = 350 m3/h
Delivery heat
Hmax. = 100 m
Temperature
-40 °C to +190 °C
Nominal pressure
16 bar
Aggressive, especially toxic, highly flammable, explosive or foul smelling media. In general all liquids that must not get into the atmosphere during the pumping process.
