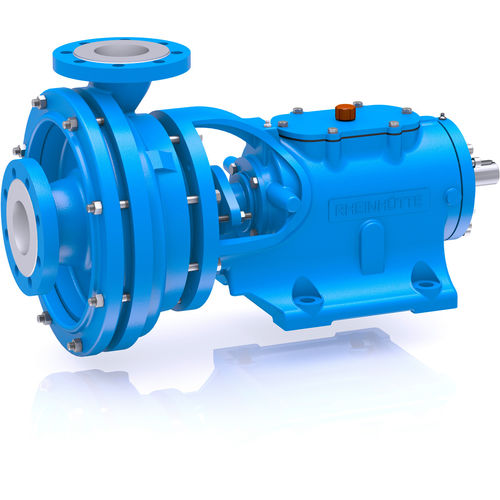

Centrifugal with volute pump RCEfor chemicalsindustrialchemical process
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal with volute
- Fluid
- for chemicals
- Domain
- industrial
- Applications
- chemical process
- Material
- metal
- Fluid specification
- for abrasive fluids, for aggressive media
- Other characteristics
- single-stage, with free shaft, horizontal mount
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 2,500 m³/h
(88,286.6668 ft³/h)- Pressure
16 bar
(232.06 psi)- Head
Min.: 0 m
(0'00" )Max.: 180 m
(590'06" )
Description
Material
Metal
Design
Pumps for applications according to API 610 (ISO 13709
Size
DN 32 - DN 300
Delivery rate
Qmax. = 2.500 m3/h
Delivery head
Hmax. = 180 m
Temperature
-40 °C to +450 °C
Nominal pressure
16 bar
Heavy-duty applications in chemically aggressive and abrasive media with or without a solids content, in chemical processing technology, the primary materials industry and other areas of industry. Typical applications are molten salt, pitch, tar, sulphur, etc.
