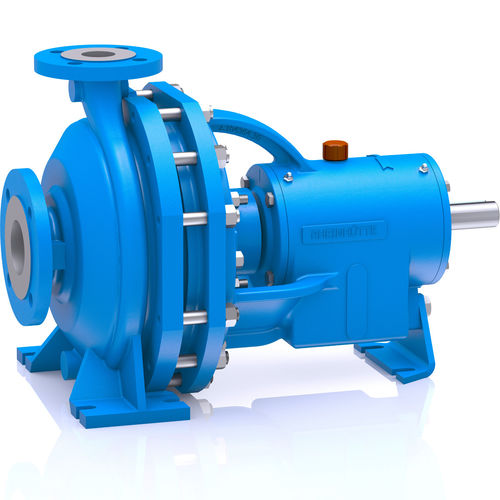

Centrifugal with volute pump RNfor chemicalsindustrialchemical process
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal with volute
- Fluid
- for chemicals
- Domain
- industrial
- Applications
- chemical process
- Material
- metal
- Fluid specification
- for aggressive media
- Other characteristics
- single-stage, with free shaft, horizontal mount
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 3,500 m³/h
(123,601.33353 ft³/h)- Pressure
16 bar
(232.06 psi)- Head
Min.: 0 m
(0'00" )Max.: 150 m
(492'01" )
Description
Material
Metal
Design
Standardized Chemical Pump (ISO 2858, ISO 5199)
Size
DN 25 - DN 400
Delivery rate
Qmax. = 3.500 m3/h
Delivery head
Hmax. = 150 m
Temperature
-40 °C to +300 °C
Nominal pressure
16 bar
Chemically aggressive media in the whole area of chemical processing technology and other areas of industry.
