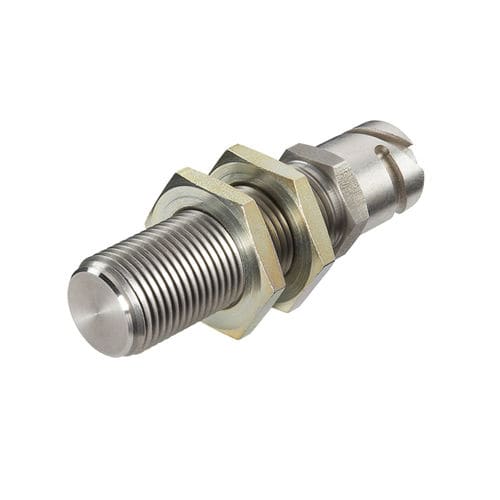

Rotational speed sensor M18 series
Hall effectnon-contactthreaded

rotational speed sensor
rotational speed sensor
Add to favorites
Compare this product

Go to the RHEINTACHO Messtechnik GmbH website for more information

Characteristics

Type of movement
rotational
Technology
Hall effect
Other characteristics
non-contact, threaded, waterproof, stainless steel, IP67, IP69K
Frequency

Max.: 15,000 Hz

Min.: 0 Hz

Temperature range

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

Applications: - Speed detection of gearwheels with small module and high resolution - Applications in vehicles, mobile operating machines and in hydraulic drives Features: - Detection from 0 Hz - No alignment required - Stainless steel - Installation dimension DIN M18 Stainless steel Several connecting possibilities Technical short data Power supply 8 VDC ... 36 VDC Frequency range 0 Hz ... 15 kHz Operating temperature -40 °C ... +125 °C / -40 °F … +257°F Degree of protection IP67, IP69K Types: SHN10.GR17.E1 / SHP10.GR17.E1 / SHP10.GR17.08 / SHP10.GR17.E05SUR / SHP7.GR09.SC / SHN7.GR09.SC / SHP7.GR10.SC Sensor 1 or 2 fixing nuts (depending on type) 1 seal
