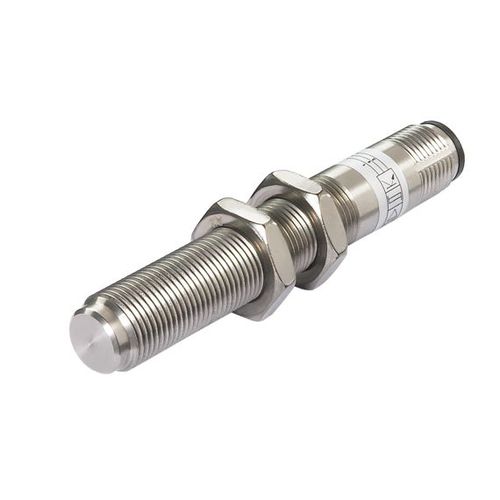

Rotational speed sensor M12-plug seriesHall effectnon-contactthreaded
Add to favorites
Compare this product
Characteristics
- Type of movement
- rotational
- Technology
- Hall effect
- Other characteristics
- non-contact, threaded, differential, stainless steel, IP67
- Frequency
Min.: 0.5 Hz
Max.: 20,000 Hz
- Temperature range
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
Applications:
Speed detection of gearwheels with small module and high resolution
Applications in vehicles, mobile operating machines and hydraulic drives
Features:
Detection up to 20 kHz
Huge air gap
Alignment required
Stainless steel
Installation dimension DIN M12
Technical short data
Power supply 10 VDC ... 36 VDC
Frequency range 0.5 Hz ... 20 kHz
Operating temperature -40 °C ... +125 °C / -40 °F ... +257 °F
Degree of protection IP67
Types:
SDN2.GI02.SB / SDP2.GI02.SB
Sensor
2 fixing nuts
