Rotational speed sensor M18 series
Hall effectnon-contactthreaded

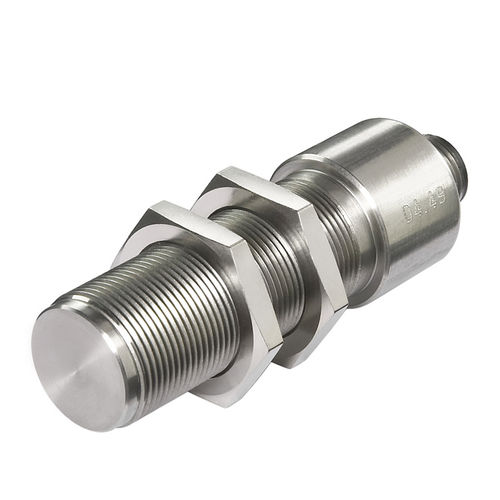

Rotational speed sensor - M18 series - RHEINTACHO Messtechnik GmbH - Hall effect / non-contact / threaded
Rotational speed sensor - M18 series - RHEINTACHO Messtechnik GmbH - Hall effect / non-contact / threaded
Add to favorites
Compare this product


Characteristics

Type of movement
rotational
Technology
Hall effect
Other characteristics
non-contact, threaded, differential, robust, compact, pick-up, high-temperature, 2-channel, IP67
Frequency

Max.: 20,000 Hz

Min.: 0.1 Hz

Temperature range

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

Applications: - Detecting speed and direction of rotation of gears - For use in extreme environments - Used in hydraulic engines Features: - Alignment required - Wide temperature range - Two frequency outputs or one frequency and one digital direction output on choice - Installation dimension DIN M18x1 Technical short data Power supply 8 VDC ... 32 VDC Frequency range 0.1 Hz ... 20 kHz Operating temperature -40 °C ... +125 °C / -40 °F ... +257 °F Degree of protection IP67 Types: SDN0.GP08.SB / SDP0.GP08.SB / SDN1.GP08.SB / SDP1.GP08.SB Sensor 2 fixing nuts Operating and mounting instructions
