Applications:
- Detecting speed and direction of rotation of gearwheels with small module and high resolution
- Applications in vehicles, mobile operating machines, electric and hydraulic drives
- Precise phase shift and small jitter
Features:
- Wide frequency range
- Alignment required
- Several connecting possibilities
Technical short data
Power supply 7 VDC ... 30 VDC
Frequency range 0.1 Hz ... 20 kHz
Operating temperature, typ. -40 °C ... +140 °C / -40 °F ... +284 °F
Operating temperature, max. -40 °C ... +160 °C / -40 °F ... +320 °F
Degree of protection IP67, IP69K
Types:
SDN3.FC07.E05J / SDN3.FC07.E1 / SDN3.FC07.E03B / SDN4.FC08.E05J / SDN4.FC08.E1 / SDN4.FC08.E2R / SDN8.FC10.E1R / SDN8.FC10.E2R

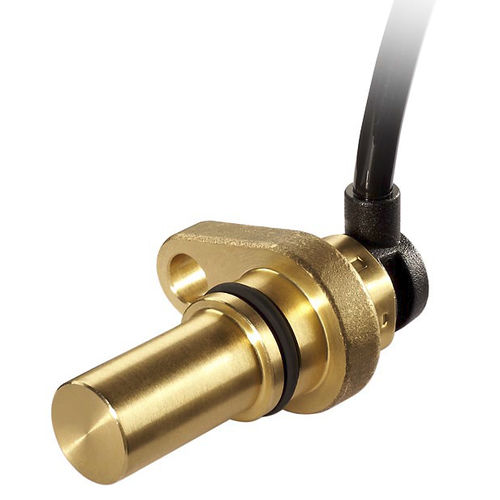

Sensor with O-Ring
Operating and mounting instructions
