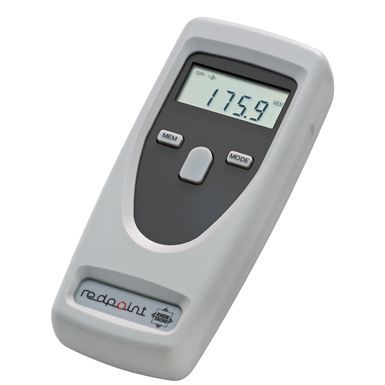

The digital hand-tachometer redpoint is a compact measuring unit for proximity measurement of rotational speed.
It focuses a beam of light at a thin sticker attached to the object, which reflects it at the speed of rotation. The result appears immediately on the 5-digit LCD. The distance between the redpoint and the test object can be up to 600 mm.
The digital hand-tachometer redpoint is just as useful when setting up plants and machinery as during service jobs, monitoring manufacturing processes or in development laboratories. It can record the speeds of engines, turbines, pumps, mixers, centrifuges and much more.
Measuring range 1 - 99,999 min-1 RPM
Measuring accuracy ±0.02 % (bzw. ± 1 Digit)
Measuring distance max. 600 mm
Measuring principle optical
Housing ABS plastic
A5-1100:
Digital hand-tachometer redpoint
10 reflective tapes
2 x 1.5 V batteries, Type AA
Case with protective foam
Calibration certificate
Operating instructions
