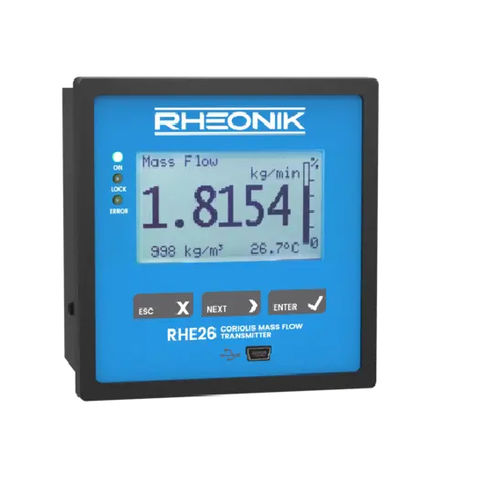

Mass flow transmitter RHE 26

volumefor liquidsgas

A small footprint, low cost transmitter designed for rack, panel or DIN rail mounting in an indoor or enclosure environment. Measures Mass Flow, Volumetric Flow, Density and Temperature Outputs 1 x Analog, 2 x Frequency/Pulse/Status Inputs 2 x Digital, 1 x Analog PC USB for RHECom, RS 485 for Modbus RTU Optional Backlit Color LCD ATEX/IEC Ex approved Rheonik Assurance Factor® General Specifications Housing: IEC61554 panel mount housing. Lockable front cover and DIN rail mount options available Enclosure Rating: IP20 (front IP54 with optional lockable cover) Ambient Temperature: -20°C to +60°C / -4°F to +140°F Dimensions: Please refer to RHE26 Dimensions page Display: Large high contrast backlit LCD 128 x 24. Screen changes color to indicate warning or error Weight: 0.45 kg / 1 lb Operation: 3 x front panel operator buttons for all menu navigation and settings Sensor Connection: Pluggable cage clamp terminal strip. Cable available in lengths up to 100 m / 328 ft for connection to remote sensor Analog Outputs: 1 x 4-20mA output, active or passive, compliant to NAMUR NE-43 Digital Outputs: 2 x configurable pulse / frequency / status (IEC 60946), max 10 kHz Digital Inputs: 1 x configurable control input (IEC60946) Power Supply: 12-24 VDC ±10%, 4W Digital Data Communications: Modbus RTU (RS485) Connection to PC (USB) with Rheonik RHECom software
