Coriolis flow meter RHM 160
massfor waterDN300 - 12"

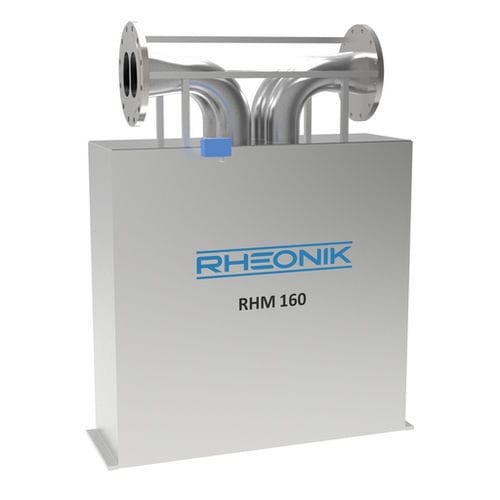

Coriolis flow meter - RHM 160 - Rheonik Messtechnik GmbH - mass / for water / DN300 - 12"
Coriolis flow meter - RHM 160 - Rheonik Messtechnik GmbH - mass / for water / DN300 - 12"
Coriolis flow meter - RHM 160 - Rheonik Messtechnik GmbH - mass / for water / DN300 - 12" - image - 2
Coriolis flow meter - RHM 160 - Rheonik Messtechnik GmbH - mass / for water / DN300 - 12" - image - 3
Add to favorites
Compare this product


Characteristics

Technology
Coriolis
Type
mass
Fluid
for water
Pipe diameter
DN300 - 12", DN250 - 10", DN275 - 11"
Installation
flange
Material
stainless steel
Protection level
ATEX, IP65, IP66, NEMA 4X
Other characteristics
precision
Mass flow rate

Min.: 750 kg/min
(1,653.47 lb/min)

Max.: 30,000 kg/min
(66,138.68 lb/min)

Process temperature

Min.: -196 °C
(-321 °F)

Max.: 120 °C
(248 °F)

Process pressure

Min.: 0 bar
(0 psi)

Max.: 60 bar
(870.23 psi)

Precision

0.1 %

Repeatibility

0.05 %, 0.1 %

Description

The RHM 160 is the ultimate cargo and pipeline meter. With a combination of high accuracy and low pressure drop, the RHM 160 is the perfect solution for rapidly transferring large fluid quanties with confidence. Materials: SS 316L / SS 316Ti, Alloy C22 – 2.4602 Process Connection: 12" up to 12" General Specifications Electrical Connection Cable entry M25 x 1.5 (standard), M20 x 1.5, ½” NPT, ¾” NPT (optional) Max. cable length to remote RHE transmitter 30m / 98ft Wetted Materials 1.4571 (316Ti), 2.4602 (Alloy C22) Additional/customer specific materials available upon request Process Connections Nearly any - the RHEONIK AnyPipeFit Commitment. Consult factory for types/sizes not listed Pressure Rating Compliance Europe – PED: Module B3.2+C2 Certifications and Approvals North American Approvals for Class I, Div. 1, Groups ABCD (suitably rated RHE transmitter required) American Bureau of Shipping (ABS) Type Approval for use on marine vessels Documentation, Testing and Inspection All sensors are hydro tested, calibrated and supplied with a traceable calibration certificate. Customized calibration and testing services available Project Documentation and QA, Services Rheonik offers a full set of services for large and complex engineering projects. Typical services offered are, but not limited to: •Certificates of origin and conformity, mill certificates •Data books including WPAR, WQS, NDT, test & quality plans, functional testing, calibration procedures, customized packing, factory acceptance etc.
