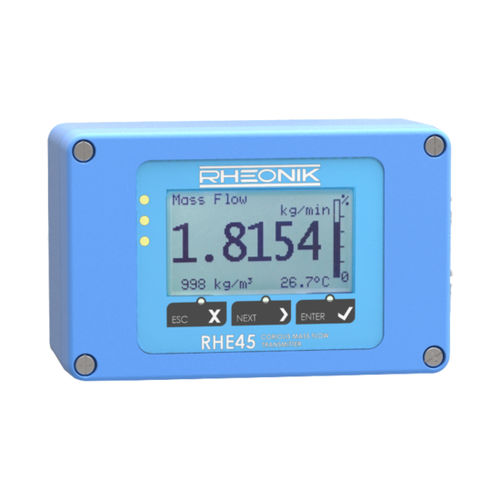

Coriolis flow transmitter RHE 45

massfor liquidsgas

The RHE45 is an extremely compact Coriolis transmitter. The Rheonik AnyInterfaceCommitment provides a wide variety of communication options for seamless connection to control or SCADA systems. Options include Ethernet, Modbus, ProfiNet, EtherCat, PowerLink, Profibus, CAN and others. Measures Mass Flow, Volumetric Flow, Density and Temperature Outputs 2 x Analog, 2 x Frequency/Pulse, 2 x Digital Status Inputs 2 x Digital PC USB / RHECom, RS 485 / Modbus RTU, Modbus TCP, Ethernet IP, Profinet, EtherCAT, PowerLink, Profibus DP, DeviceNet and CANopen Optional Backlit Color LCD Rheonik Assurance Factor® General Specifications Enclosure Material Epoxy coated aluminum enclosure Enclosure Rating IP66 / NEMA 4 Ambient Temperature -40 to +60°C (-40 to +140°F) Reduced display visibility at temperatures below -10°C (14°F) Dimensions Aluminum enclosure: 125 x 80 x 57 mm / 4.92 x 3.15 x 2.24 in Display Optional high contrast backlit LCD color display available Operation Via RHECom configuration software 3 x front panel operator buttons with optional LCD display Electrical Connection Via 12 pin and 8 pin A-coded plug in connectors USB for PC connection Totalizers Forward, reverse and net flow totalizers for both mass and volume Analog Outputs Up to 2 x 4-20 mA (active/passive) for flow, density or temperature Pulse/Freq/Status Outputs Up to 2 x configurable pulse/frequency/status outputs (IEC60946). Max. frequency 10kHz Digital Inputs Up to 2 x configurable control inputs (to IEC60946) Digital Data Communications Modbus RTU/TCP, Ethernet IP, Profinet, EtherCAT, PowerLink, Profibus DP, DeviceNet, CANopen. Others on request
