Pneumatic manipulator COLUMN MANIPULATOR

with gripping toolfor liftingrope

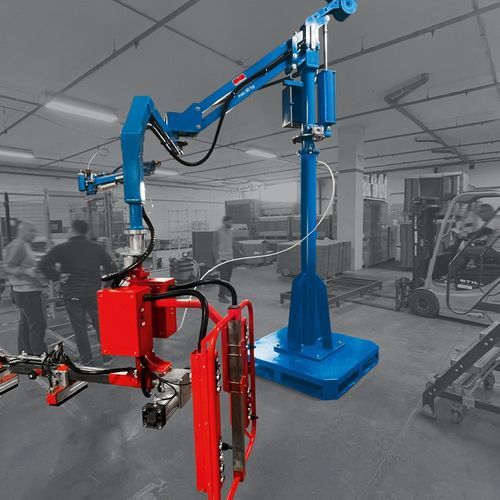

The rope manipulator features two articulated arms: one for the cylinder and one serving as a tank. It employs a system of pulleys connected to a pneumatic cylinder to convert linear cylinder movement into vertical rope movement, with increased load capacity and stroke. This machine is well-suited for lifting loads ranging from 25 kg to 150 kg. Upon request, it is available in ATEX and 4.0 versions, offering maximum versatility for various industrial applications. Tecnichal data 1. Supply: 7-bar compressed air 2. Max load capacity: from 20 to 200 kg tool not included 3. Mass: from 60 to 105 Kg 4. Axis 1 rot. angle: 360° 5. Axis 12 rot. angle: 330° 6. Vert range: 1800 mm 7. Max radius: from 2000 to 3000 mm (special version 3500) 8. Min radius: from 300 to 700 mm 9. Standard colour: RAL 5015 10. Platform base: from 500x500 to 1000x1000
