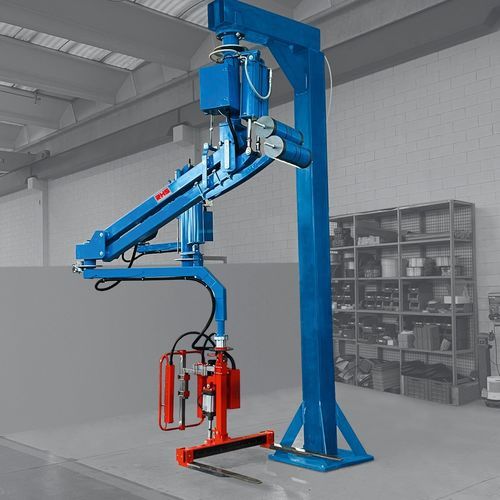

Pneumatic manipulator FIXED CEILING MANIPULATOR

mechanicalwith gripping toolpillar

The mechanical manipulator is distinguished by its rigid arms, ideal for statically and precisely handling off-center loads. This versatile manipulator covers a wide range of capacities, from 20 kg to 1000 kg. It is also equipped with pneumatic brakes and anti-fall and anti-tilting safety systems, accommodating most gripping tools in production. The accumulation tank ensures available air for component storage, even in the event of a sudden interruption of pneumatic power. This manipulator is customizable in terms of radius and vertical travel and is available upon request in ATEX and 4.0 versions. Tecnichal data 1. Supply: 7-bar compressed air 2. Max load capacity: 200 kg tool not included 3. Mass: 220 Kg 4. Axis 1 rot. angle: 360° 5. Axis 12 rot. angle: 330° 6. Vert range: 1850 mm 7. Max radius: 4000 mm 8. Min radius: 700 mm 9. Standard colour: RAL 5015 10. Platform base: 800x800x30 mm
