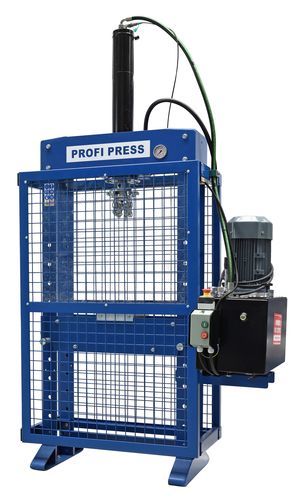

Broaching press hydraulicwith movable tablevertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- broaching
- Structure
- with movable table
- Other characteristics
- vertical, with pressure regulator
- Force
147 kN
- Stroke
600 mm
(23.622 in)- Max. pressure
Max.: 232 bar
(3,365 psi)Min.: 0 bar
(0 psi)- Working speed
Max.: 30 mm/s
Min.: 0 mm/s
- Return speed
Max.: 40 mm/s
Min.: 0 mm/s
- Approaching speed
30 mm/s
- Hydraulic pump power
5.5 kW
- Weight
305 kg
(672 lb)
Description
The piston stroke is 600 mm and the hydraulic press includes a joystick for the vertical movement of the piston. This broaching press also incorporates a pressure control valve and a speed control valve.
Diameters
Inside diameter of cylinder [mm]: 90
Diameter of piston rod [mm]: 50
Diameter of piston head [mm]: 80
Features
Integrated pressure manometer
Pressure regulation
In height adjustable working table
Joystick for the control of the piston
Speed control valve
Optional accessories
V-block set for extra support
Collection tray between the feet of the press
Collection tray for the broach-tool
Material tray for the working table
