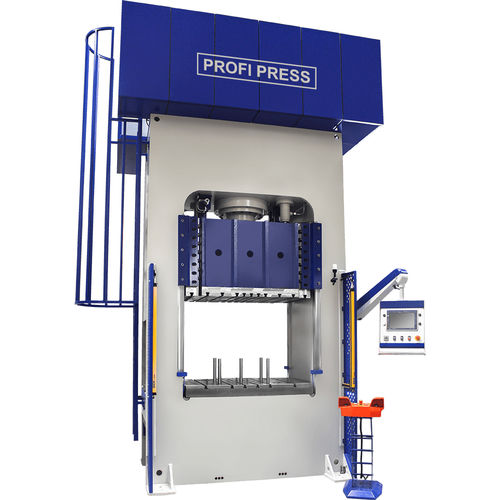

Hydraulic press HDDT-200

drawingdeep drawingram

This 200 Ton Double Action Press is designed to carry out deep-drawing tasks in medium and high volumes. Also suitable to incorporate in automated production lines. We design this Profi Press Deep Draw Press with an upper- and lower table with T-grooves to easily mount moulds and tools. Equipped with a ram cylinder and an hydraulic cushion. The hydraulic unit is standard provided with an air-oil cooling system. This 200 ton double action press with high speeds has a control panel featuring a touch screen. The control system permits programming the power, the cylinder stroke and pressure-time. And the machine operator operates this hydraulic press by means of two-hands push buttons. Features Chrome plated cylinder and a steel welded frame T-slotted tables Main cylinder and hydraulic cushion Safety light guards at the frontal working area HMI Touch Screen control panel to program pressure, cylinder stroke & pressure time Lubrication Oil pressure gauge Operation by means of a two-hands button control Optional accessories Geometry adapted to your requirements (for example larger tables or a larger piston stroke) Hydraulic ejector cylinder in upper table Variable speeds Tool loading device
