Portal press hydraulicformingvertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- portal
- Other characteristics
- vertical, custom, with pressure regulator
- Force
160 tf
- Stroke
700 mm
(27.559 in)- Table width
1,500 mm
(59 in)- Table length
1,840 mm
(72 in)- Max. pressure
Max.: 255 bar
(3,698 psi)Min.: 0 bar
(0 psi)- Working speed
2 mm/s
- Return speed
9 mm/s
- Approaching speed
7 mm/s
Description

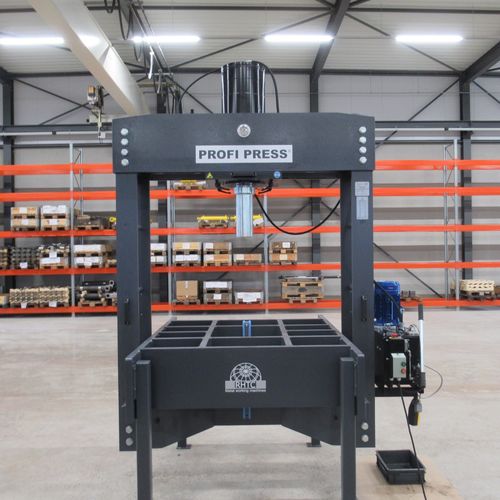

This 160 ton custom-made portal press is designed to press out large axes from gear units. The press has a working width of 1500 mm and a cylinder stroke of 700 mm. It also has a vertical light of 1000 mm to make sure that the products fit into the press easily.
Made in the Netherlands and 100% custom-made to the requirements of the customer. In total the press has a length of 2000 mm, a width of 2500 mm and a height of 3200 mm.
Features
Manually movable cylinder
Manually movable portal
Hand remote controller to control up/down movement of the cylinder
Hand pump for precision pressing
Pressure regulator and manometer
2 speeds
Special designed grid for the table (to press out large axes)
