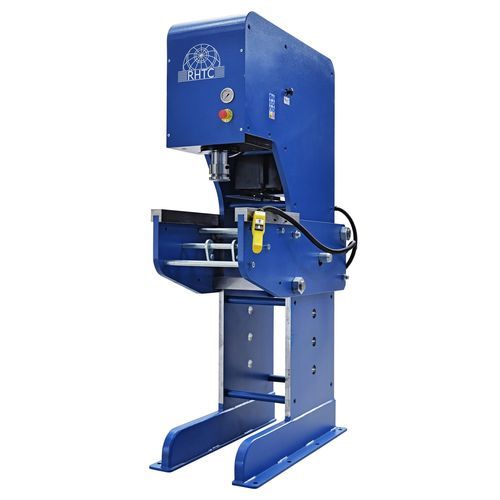

Hydraulic press PPC-MT-60
straighteningassemblyC-frame

hydraulic press
hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
straightening, assembly
Structure
C-frame, mandrel
Other characteristics
digital
Force

60 tf

Stroke

400 mm
(15.748 in)

Working speed

3 mm/s

Return speed

12 mm/s

Approaching speed

9 mm/s

Hydraulic pump power

2.2 kW

Weight

1,250 kg
(2,756 lb)

Overall length

1,300 mm
(51 in)

Overall width

650 mm
(26 in)

Overall height

2,100 mm
(83 in)

Description

This C-frame Press Machine has a capacity of 60 ton and is made in Europe. Suitable for general assembly and straightening work or testing work pieces. Thanks to the C-frame and the movable worktable, you can work with many different material sizes. Our 60 ton C-frame Press Machine is designed as a combination between a C-frame Press and our Hydraulic Workshop Presses. This hydraulic press model is equipped with a manometer, pressure regulator, switch for the 2 cylinder speeds, a joystick for moving the piston and an in-height adjustable worktable. We show this C-frame Press in our RHTC showroom and deliver it directly from our stock all over the world. Contact us for more information or for a personalized quote for one of our Profi Press hydraulic presses! Features Integrated pressure manometer Pressure regulation Hydraulic unit with a 2-speeds handle In height adjustable working table Joystick for the control of the piston Optional accessories Mandrel set / Pressure pins Digital stroke read-out Foot pedal Table plate
