Hydraulic press SMC-PP-200

formingramwith heating plates

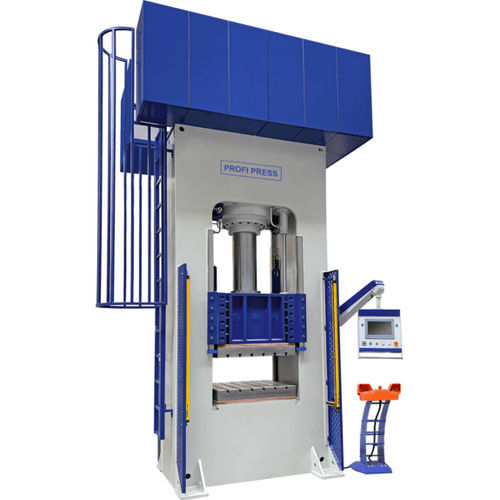

This 200 Ton Hot Plated Press is designed to carry out work with hot molds or hot plates, since the insulation between the plates is standardly made. These presses are mainly used in the production of composite materials, rubber and many other components that require heat in their production. Obviously we can manufacture these hydraulic presses with the hot plates itself as well and we have them available up to 3000 ton capacity. We design this Profi Press SMC-Press with an upper- and lower table with T-grooves to easily mount moulds and tools. Equipped with a chrome plated ram cylinder. The hydraulic unit is standard provided with an air-oil cooling system. This 200 Ton Hot Plated Press has a control panel featuring a touch screen. The control system permits programming the power, the cylinder stroke and pressure-time. Also, if we supply the heated plates, the temperature is adjustable on the control panel as well. And the machine operator operates this hydraulic press by means of two-hands push buttons. Features Chrome plated main cylinder and a steel welded frame T-slotted tables Safety light guards at the frontal working area HMI Touch Screen control panel to program pressure, cylinder stroke, pressure time and temperature Oil pressure gauge Operation by means of a two-hands button control The software of press is written according to the production process requested by the customer Optional accessories Geometry adapted to your requirements (for example larger tables or a larger piston stroke) Cooling channels Hydraulic ejector cylinder Variable speeds
