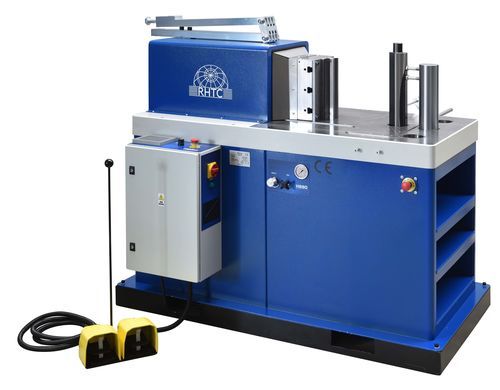

Manual press PPHB-80

hydraulicstraighteningbending

Our horizontal bending press (80 ton) can be used for many different metal working jobs. The press has a piston stroke of 300 mm and can be equipped with all kinds of tooling for specific bending or straightening jobs. We supply a standard toolingset with this press including a stampholder and backgauge. However, we also produce custom-made tooling for your specific request. Thanks to the NC-control you can easily set the cylinder stroke and save up to 100 working cycles. With this horizontal bending press (80 ton) you are able to bend, straighten, notch, cut and form. A universal hydraulic press that serves all your needs in cold metal working processes. Our PPHB-80NC is made in Europe. We try to keep these Profi Press horizontal presses in our stock, so delivery can be fast! Features NC-control to set the piston stroke and save up to 100 programs Selector for manual or semi-automatic operation Flow adjustment valve and pressure control valve Integrated pressure manometer Worktable with an angular graduation Back gauge We provide different tooling to install on the worktable, on the tool mount and in the punch- and pin holes for a wide range of operations and task Optional accessories Motorized back gauge Tool for bending material with a large radius Accessory for bending a rod (symmetrical) Tool for bending sheet metal into specific shape Several stamps and dies
