Hydraulic press 60 M/H-2
manualmotorizedstraightening

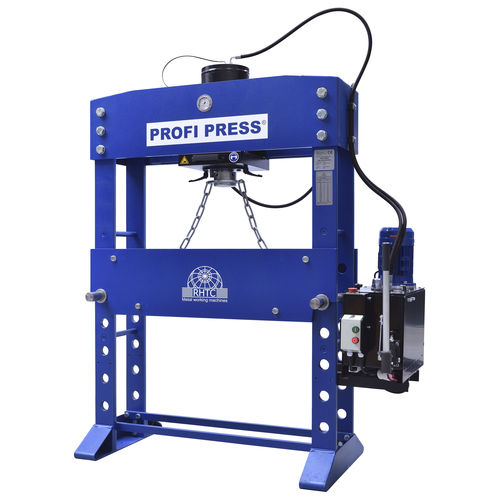

Hydraulic press - 60 M/H-2 - RHTC BV - manual / motorized / straightening
Hydraulic press - 60 M/H-2 - RHTC BV - manual / motorized / straightening
Hydraulic press - 60 M/H-2 - RHTC BV - manual / motorized / straightening - image - 2
Hydraulic press - 60 M/H-2 - RHTC BV - manual / motorized / straightening - image - 3
Hydraulic press - 60 M/H-2 - RHTC BV - manual / motorized / straightening - image - 4
Hydraulic press - 60 M/H-2 - RHTC BV - manual / motorized / straightening - image - 5
Hydraulic press - 60 M/H-2 - RHTC BV - manual / motorized / straightening - image - 6
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, manual, motorized
Function
straightening
Structure
H-frame
Other characteristics
fixed, digital, with pressure regulator, with pedal control
Force

600 kN

Stroke

380 mm
(14.961 in)

Max. pressure

Max.: 259 bar
(3,756 psi)

Min.: 0 bar
(0 psi)

Working speed

3 mm/s

Return speed

11 mm/s

Approaching speed

10 mm/s

Hydraulic pump power

2.2 kW

Weight

540 kg
(1,190 lb)

Description

Our 60 ton workshop press has a fixed cylinder and an in-height adjustable working table (motorised). Equipped with pressure regulation, manometer, 2 speeds and a joystick to move the piston up and down. With this joystick you are able to move the piston precisely, which makes this hydraulic press perfectly suitable for precision tasks. Additionally, this workshoppress is equipped with a hand pump for manual pressing jobs. Diameters Inside diameter of cylinder [mm]: 170 Diameter of piston rod [mm]: 75 Diameter of piston head [mm]: 100 Features Integrated pressure manometer Pressure regulation Hydraulic unit with a 2-speeds handle In height adjustable working table Joystick for the control of the piston Hand pump for precision pressing Optional accessories Movable cylinder Foot pedal, two-hands operation or hand remote controller V-block set for extra support Mandrel set / Pressure pins Digital stroke read-out Table plate / pressing table Protection screens (customisable)

VIDEO

Catalogs
