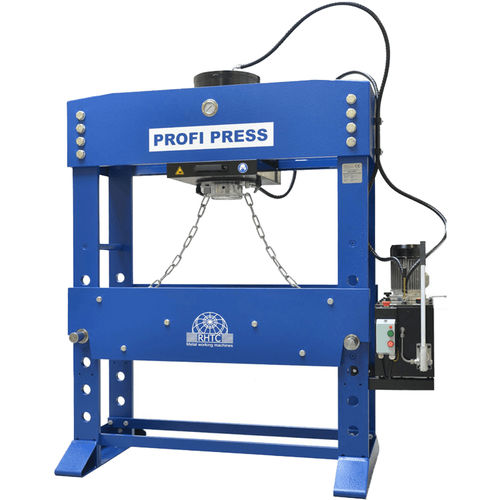

Hydraulic press 160 M/H-M/C-2motorizedstraighteningH-frame
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized
- Function
- straightening
- Structure
- H-frame
- Other characteristics
- with pressure regulator, with pedal control
- Force
1,570 kN
- Stroke
400 mm
(15.748 in)- Max. pressure
Max.: 25,500,000 Pa
(3,698 psi)Min.: 0 Pa
(0 psi)- Working speed
2 mm/s
- Return speed
9 mm/s
- Approaching speed
7 mm/s
- Weight
1,195 kg
(2,635 lb)
Description
This 160 ton workshop press is equipped with a movable cylinder (left-right) and an in-height adjustable working table.
The motorised hydraulic unit is provided with a pressure regulator, 2 speeds, a joystick and a hand pump for precision pressing.
Exclusively made in the Netherlands and directly available from our stock.
Diameters
Inside diameter of cylinder [mm]: 280
Diameter of piston rod [mm]: 125
Diameter of piston head [mm]: 160
Features
Movable cylinder (left-right)
Integrated pressure manometer
Pressure regulation
Hydraulic unit with two speeds
In height adjustable working table
Joystick for the control of the piston
Hand pump for precise press work
Optional accessories
Foot pedal or hand remote controller
V-block set for extra support for the 160 ton workshop press
