Hydraulic press 200 M/H-M/C-2 D=1300
motorizedstraighteningH-frame

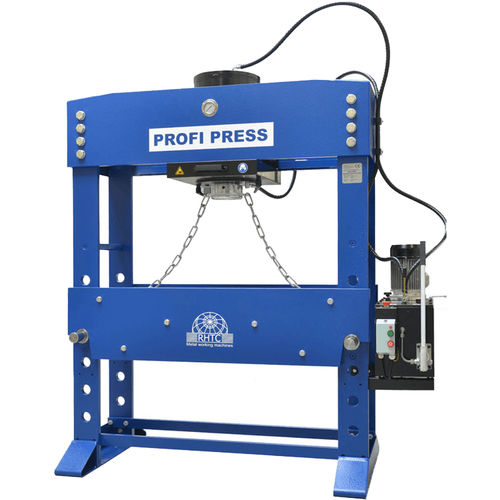

Hydraulic press - 200 M/H-M/C-2 D=1300 - RHTC BV - motorized / straightening / H-frame
Hydraulic press - 200 M/H-M/C-2 D=1300 - RHTC BV - motorized / straightening / H-frame
Hydraulic press - 200 M/H-M/C-2 D=1300 - RHTC BV - motorized / straightening / H-frame - image - 2
Hydraulic press - 200 M/H-M/C-2 D=1300 - RHTC BV - motorized / straightening / H-frame - image - 3
Hydraulic press - 200 M/H-M/C-2 D=1300 - RHTC BV - motorized / straightening / H-frame - image - 4
Hydraulic press - 200 M/H-M/C-2 D=1300 - RHTC BV - motorized / straightening / H-frame - image - 5
Hydraulic press - 200 M/H-M/C-2 D=1300 - RHTC BV - motorized / straightening / H-frame - image - 6
Add to favorites
Compare this product

Go to the RHTC BV website for more information

Characteristics

Operation
hydraulic, motorized
Function
straightening
Structure
H-frame
Other characteristics
with pressure regulator, with pedal control
Force

1,962 kN

Stroke

400 mm
(15.748 in)

Max. pressure

Max.: 243 bar
(3,524 psi)

Min.: 0 bar
(0 psi)

Working speed

2 mm/s

Return speed

7 mm/s

Approaching speed

6 mm/s

Hydraulic pump power

3 kW

Weight

1,690 kg
(3,726 lb)

Description

This 200 ton hydraulic press is equipped with a movable cylinder (left-right), in-height adjustable working table, pressure regulation, 2 speeds, joystick and a hand pump for precision pressing. Our motorised workshop presses are exclusively made in the Netherlands and directly available from our stock. Diameters Inside diameter of cylinder [mm]: 320 Diameter of piston rod [mm]: 140 Diameter of piston head [mm]: 175 Features Movable cylinder (left-right) Integrated pressure manometer Pressure regulation Hydraulic unit with two speeds In height adjustable working table Joystick for the control of the piston Hand pump for precise press work Optional accessories Foot pedal or hand remote controller V-block set for extra support
