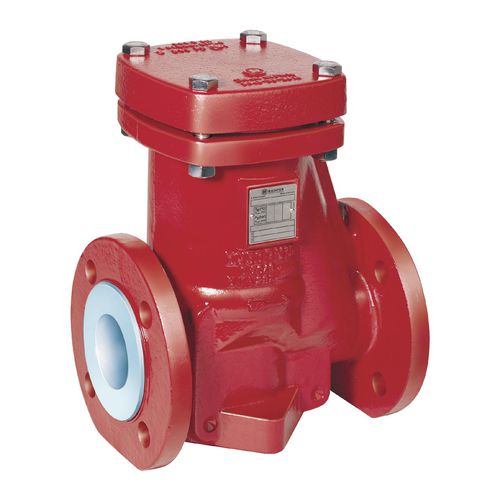

Flange check valve GR seriesPFA-linedcast ironhorizontal
Add to favorites
Compare this product
Characteristics
- Body
- flange
- Material
- PFA-lined, cast iron
- Other characteristics
- horizontal
- DN
Max.: 4 in
Min.: 0.5 in
- Temperature
Max.: 180 °C
(356 °F)Min.: -60 °C
(-76 °F)
Description
Features
•Maximum reliability: body PFA lining 5 - 6 mm
•ISO design, with solid plug, can be installed horizontally
•Closes even with a very small or no pressure difference
•Wide variety of versions of check valves available
Specifications
•Design - ANSI/ISA-75.08.01 ANSI/ISA-75.08.01
•Nominal Pressure - Class 150
•Lining - PFA
•Housing Material - EN-JS 1049
•Face-to-Face - ANSI/ISA-75.08.01
•Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
•Temperature Range - -60 °C to +180 °C (-75 °F to +360 °F)
•Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft)
