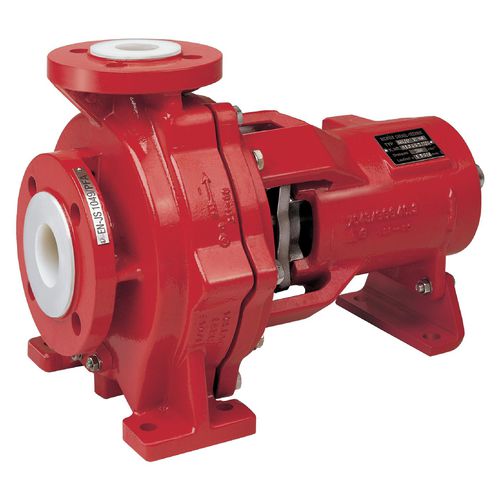

Pump with mechanical seals SCKcentrifugalfor chemicalsindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for chemicals
- Domain
- industrial
- Protection level
- explosion-proof
- Other characteristics
- horizontal mount, with mechanical seals, heavy-duty, standard, lubricated, flange
- Pressure
16 bar
(232.06 psi)
Description
Features
•High reliability through optimum design of the pump and mechanical seal RG4 for solids
•Standardization possible: mechanical seal of conventional manufacturer usable
•Low replacement costs for mechanical seal through long service life: very quiet running through deflection-resistant shaft
•Also resistant under changing operating conditions: PFA lining, mechanical seal made of SiC (with type RG4)
Specifications
•Design - Long life grease or oil bath lubrication
•Nominal Pressure - PN16
•Lining - PFA, PTFE, PE-UHMW, PFA conductive
•Housing Material - EN-JS 1049 / ASTM A 395
•Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
•Temperature Range - -60 °C to +180 °C (-80 °F to +360 °F)
•Certifications - 2006/42/EC Machinery Directive, 2014/34/EU Equipment explosive atmosphere
