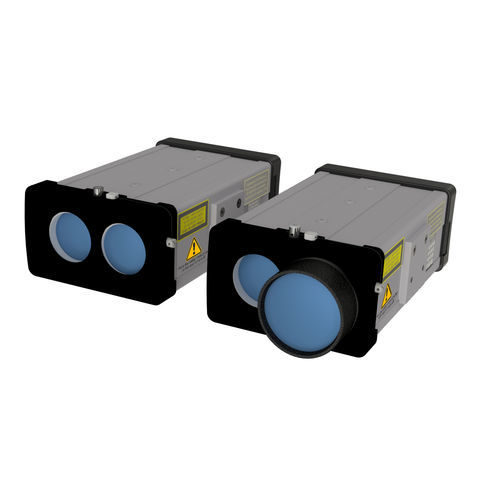

Laser distance meter LD05-A series

with angle measurementmetric

The RIEGL LD05 is a multi-purpose laser distance meter based on precise time-of-flight laser range measurement. It uses state-of-the-art digital signal processing enabling precise distance measurement for complex multi-target situations even under bad visibility conditions. Digitizing the echo signal and subsequent analyzing allows multi-target distance measurements. Five target distances can be detected and provided for each laser shot. The LD05 can be configured for various application modes: • High Penetration and High Accuracy Mode for complex target situations, based on a sequence of laser shots, self-adapting (rather low) data update rate Significant enhancement of the maximum range based on Pre-Detection-Averaging • Fast Mode is between the High Speed and High Penetration Mode, very high data update rate • High Speed Mode for simple target situations, extremely high data update rate • Short infrared laser pulses providing excellent interference immunity • Narrow measurement beam with low divergence for excellent spatial resolution • Measurement to almost any surface regardless of the angle of incidence of the beam and the surface characteristics • Lightweight, stable aluminium housing, ready to be used in harsh industrial environments. • Different basic instrument types with pre-configured measurement modes, but also individually programmable for customer specific applications
