Laser distance meter LD05-HTGF

with angle measurement

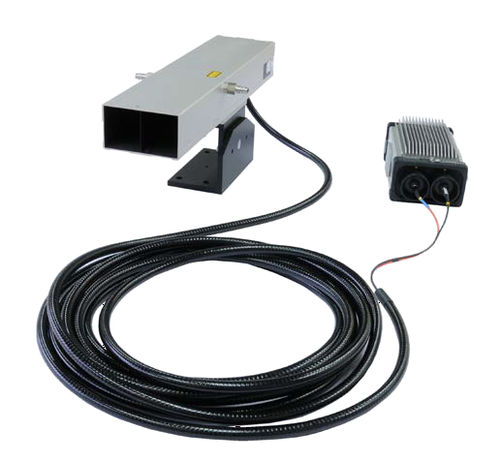

The RIEGL LD05-HTGF is a laser distance meter based on precise time-of-flight laser range measurement especially suited for demanding applications under critical environmental conditions, i.e. high ambient temperature or hazardous environment. It is additionally optimized for very high target temperatures. It uses state-of-the-art digital signal processing to enable precise distance measurement for complex multi-target situations even under bad visibility conditions. Digitizing the echo signal and subsequent analysis enables multi-target distance measurements. The measuring System consists of an optical head meeting the requirements of the relevant application and a separate electronics box, connected by a duplex glass-fiber cable of variable length with connectors on both sides. • Electronics unit and measuring head can be mounted separately according to requirements resulting from critical environmental conditions • Further improved measurement capability in demanding situations causing poor visibility (rain, dust, fog). • Short infrared laser puises providing excellent interférence immunity • Narrow measurement beam with low divergence for excellent spatial resolution • Measurement to almost any surface regardless of the angle of incidence of the beam and the surface characteristics • Significant enhancement of the maximum range based on pre-detection-averaging
