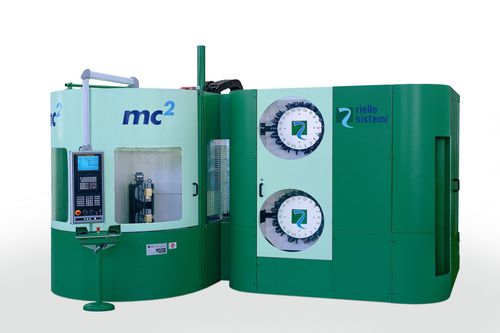

Rotary transfer machine MC2 320

CNC4-positionmulti-spindle

mc2 320 is a new generation flexible machining cell consisting of a machining center with two independent spindles and a 4 position APC (Automatic Pallet Changer). A tool magazine for each spindle allows to have up to 60 tools available. The two working spindles are mounted in parallel and independent each other, to assure the simplest use and the highest machining quality. On each pallet are mounted two "FIXED" self-centring chucks to produce two parts simultaneously. TOOL MONITOR Riello Tool Monitor works by monitoring the spindle motors absorption, through a direct reading inside the drives and thanks to an on-purpose developed SW. Management of pre-alarms levels and of missing tool alarms. Teach-in function. Possibility of selection via RUI interface. BK MIKRO Mechanical tool detecting system. Motorized head nearby the tool, equipped with detecting stick. Management of broken tool and of detector non-rotation alarms. Selection via RUI Interface. AIR FILTER EXTRACTORS Exhaust system for smokes produced by the machine, to be mounted both in the working and in the chip conveying area. ANGULAR HEADS Special heads, engineered for angle drilling or tapping operations, with no need of swivelling units. Generally used for light machining operations and for units mounted on linear slide.
