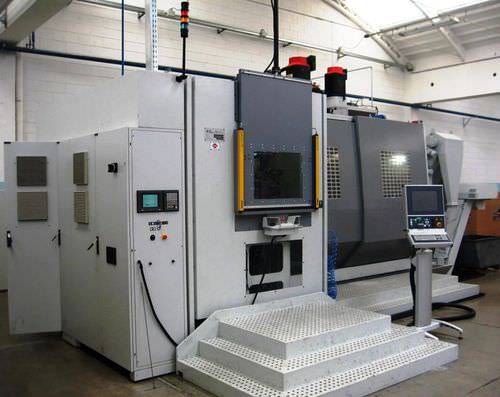

3-axis CNC milling machine TSP 1

verticalHSK-100-Awith integrated pallet changer

Special Purpose Machine for milling operation on six-cylinder crankcase stiffening plate. Special Purpose Machine equipped with 5 units. 500mm thru 2500mm stroke. Milling spindle cartridges with HSK100 nose, spindle power 15kW thru 30kW. Pallet changers, one at loading/unloading station and one in operation. Pallet dimension 400mm holding a dedicated clamping fixture. Automatic loading system with anthropomorphic robot. TOOL MONITOR Riello Tool Monitor works by monitoring the spindle motors absorption, through a direct reading inside the drives and thanks to an on-purpose developed SW. Management of pre-alarms levels and of missing tool alarms. Teach-in function. Possibility of selection via RUI interface. BK MIKRO Mechanical tool detecting system. Motorized head nearby the tool, equipped with detecting stick. Management of broken tool and of detector non-rotation alarms. Selection via RUI Interface. PART CLAMPING CONTROL SYSTEM Inductive proportional sensor system, positioned on clamping fixture at loading/unloading station. Identification and correction connected to each single clamping fixture and saved on part-program. AIR FILTER EXTRACTORS Exhaust system for smokes produced by the machine, to be mounted both in the working and in the chip conveying area. LOADING HELP DEVICES Workpiece lifting or positioning system at loading/unloading station. This device is required to aid the part load during chuck closing, where NO loading equipment is available. It can be mounted on slide, manually operated or hydraulically CNC controlled. Selected via RUI Interface, it can be used for loading, unloading, supporting and positioning functions.
