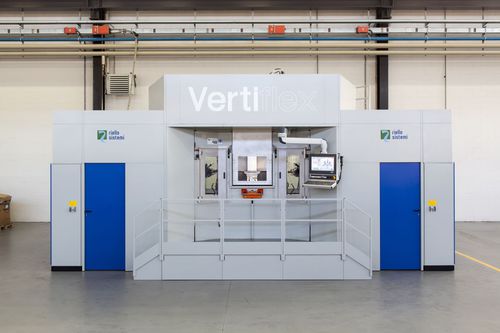

Rotary transfer machine VFX 300

CNC6-position4-position

The Vertiflex 300, the small version of the VFX Flexible Transfers Machines, is a flexible manufacturing cell which combines the high production capacity of a conventional rotary Transfer Machine with the high flexibility of the machining centers. Available with 4 or 6 station clamping fixtures, it can be equipped with 5 thru 8 machining centers, each one equipped with 6-position tool change revolver head. Maximum flexibility, achieved by mounting up to 48 tools in the full configuration, means the possibility to produce parts of any shape which can fit into a 300mm cube. Machining five sides in one chuck assures a high quality of the finished parts. To be particularly underlined the possibility to employ one or more full CNC facing heads on the tool change revolver head. TOOL MONITOR Riello Tool Monitor works by monitoring the spindle motors absorption, through a direct reading inside the drives and thanks to an on-purpose developed SW. Management of pre-alarms levels and of missing tool alarms. Teach-in function. Possibility of selection via RUI interface. BK MIKRO Mechanical tool detecting system. Motorized head nearby the tool, equipped with detecting stick. Management of broken tool and of detector non-rotation alarms. Selection via RUI Interface. PART CLAMPING CONTROL SYSTEM Inductive proportional sensor system, positioned on clamping fixture at loading/unloading station. Identification and correction connected to each single clamping fixture and saved on part-program. AIR FILTER EXTRACTORS Exhaust system for smokes produced by the machine, to be mounted both in the working and in the chip conveying area.
