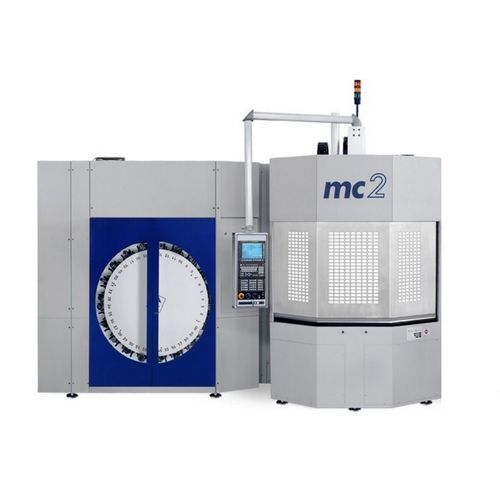

Rotary transfer machine MC2 700

CNC4-positionmulti-spindle

mc2 700 is a new generation flexible machining cell consisting of a machining center with two independent spindles and a 4 position APC (Automatic Pallet Changer). A 30-place tool magazine for each spindle allows to have up to 60 tools available. The two mono-spindle machining centers are independent and allow for a simple use and quality of the machined parts, completely identical to ones of the traditional machining centers. TOOL MONITOR Riello Tool Monitor works by monitoring the spindle motors absorption, through a direct reading inside the drives and thanks to an on-purpose developed SW. Management of pre-alarms levels and of missing tool alarms. Teach-in function. Possibility of selection via RUI interface. BK MIKRO Mechanical tool detecting system. Motorized head nearby the tool, equipped with detecting stick. Management of broken tool and of detector non-rotation alarms. Selection via RUI Interface. AIR FILTER EXTRACTORS Exhaust system for smokes produced by the machine, to be mounted both in the working and in the chip conveying area. IN PROCESS CONTROL DEVICES In-process gauging device for one or more dimensions, with retro-action and dimensional correction of machining operations made in the previous station. Device installed on a fully CNC Riello control group.
